FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow

FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow
FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow

Large Image :  FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow

Product Details:
Place of Origin: Shenzhen China
Brand Name: Future Tech
Certification: CE,ISO,ROHS,REC
Model Number: FT3000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Model: FT3000 Power: 3000W
Voltage: 110/120VAC Warranty: 1 Years Warranty
Payment: T/T,Western Union,L/C Dimensions D X W X H(mm): 435x295x105mm
Highlight:

110V 3kva mppt solar inverter

,

120V 3kva mppt solar inverter

,

Off Grid photovoltaic inverter

FT3000 off grid inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC Power Off Grid Inverter Max 12PCS In Parallel

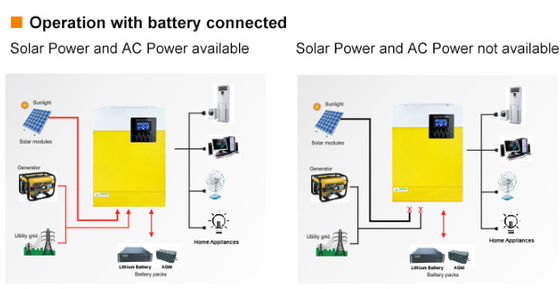

This is a multi-functional inverter/charger,combining functionsof inverter,solar charger and battery charger to offer uninterruptiblepower support in portable size. Its comprehensive LCD displayoffers user-configurable and easy-accessible button operationsuch as battery charging current, AC/solar charger priority,andacceptable input voltage based on different applications.

Features:

1. Supporting 24V Lithium Battery

2. Pure sine wave solar inverter

3. Output power factor 1

4. High PV input voltage range

5. Battery equalization function to optimize battery performance and

6. extend lifecycle Inverter running without battery

7. Built-in MPPT solar controller

8. WiFi/GPRS remote monitoring RS485 communication for BMS(Optional)

9. Detachable LCD(Optional)

Application Area:

Office and public facilities, household system, networktransmission equipment, manufacturing, control system,solar energy system, oil field, drilling field operation, etc. Provide stable, reliable and safe solutions for families, islands.ships and other small photovoltaic power systems





Technical Data
MODEL FT3000
CAPACITY 3KVA/3KW
Parallel Capability YES, 12 units
Split phase operation YES,need at least 2 units parallel
INPUT
Nominal Voltage 110/120VAC
Acceptable Voltage Range 95-140VAC(For personal Computer);65-140VAC(For Home Appliances)
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 110/120VAC±5%
Surge Power 6000VA
Frequency 50/60HZ
Waveform Pure Sine wave
Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency (PV to lNV) 97%
Peak Efficiency (Battery to INV) 93%
Overload Protection 5s@>=150% load; 10s@110%-150% load
Crest Factor 3:1
Admissible Power Factor 0.6*1 (inductive or capacitive)
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
OverCharge Protection 63VDC
Charging Method CC/CV
Solar Charger& AC Charger
Solar Charger TYPE MPPT
Max.PV Array Power 5000W
Max. PV Array Open Circuit Voltage 500VDC
PV Array MPPT Voltage Range 120VDC-450VDC
Max. Solar Input Current 18A
Max. Solar Charge Current 80A
Max. AC Charge Current 60A
Max. Charge Current 80A
PHYSICAL
Dimensions D x W x H(mm) 435x295x105
Package Dimensions D x W x H(mm) 560x380x190
Net Weight (Kg) 10
Communication Interface Rs485/RS232/Dry-contact
ENVIRONMENT
Operating Temperature Range -10°C to 50°C
Storage temperature -15°C~60°C

FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 0FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 1FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 2FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 3FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 4FT3000 Off Grid Inverter Pure Sine Wave Solar Inverter 3KW 110/120VAC with yellow 5
