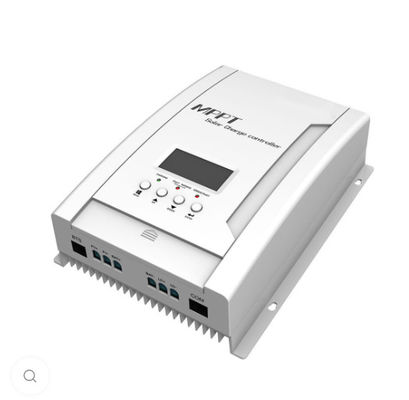

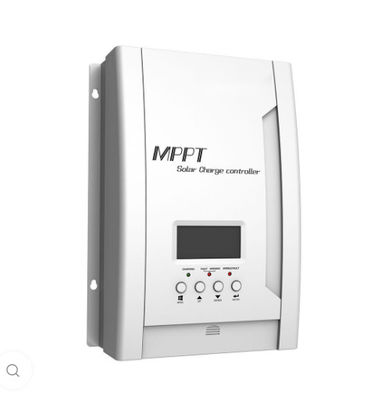

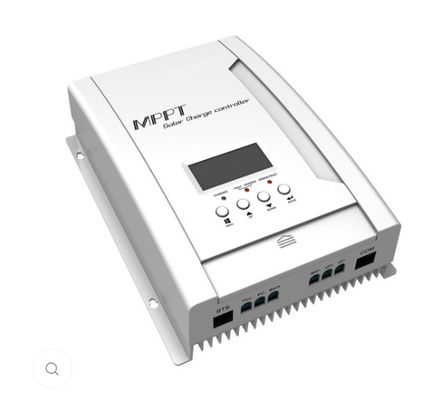

FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor

FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor
FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor

Large Image :  FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor

Product Details:
Place of Origin: Shenzhen China
Brand Name: Future Tech
Certification: CE,ISO,ROHS,REC
Model Number: FTPC1800A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Model: FTPC1800A Nominal Battery System Voltage: 12V / 24V (Auto Detection)
Maximum Solar Input Voltage: 150V Charging Set Points: Absorption, Float
Enclosure: IP30 Machine Dimension (W*H*D)(mm): 187*255*72 (per Pcs)
Highlight:

MPPT hybrid inverter 3kw

,

Off Grid hybrid inverter 3kw

,

5.5kw hybrid pv inverter

FTPC1800A Series (30/40A) MPPT Solar Charge Controller

This solar charge controller is an advanced solar charger with maximum power point tracking. Applying intelligent MPPT algorithm, it allows solar charge controller to extract maximum power from solar arrays by finding the maximum power point of the array.

The MPPT battery charging process has been optimized for long battery life and improved system performance. Self-diagnostics and electronic error protections prevent damage when installation errors or system faults occur.

Features:

• Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%

• Compatible for PV systems in 12V,or24V

• Three-stage charging optizes battery performance

• Maximum charging current up to 30A/40A

• Advanced MPPT technology,with efficienQf no less than 99%

• Maximum DC- DC conversion efficiency of 98%

• Battery temperature sensor(BTS) automatically provides temperature compensation Automatic battery voltage detection

• Integrated intelligent slot compatible with 485 communication



Specification:

MODEL FTPC1800A
Brand Future Tech
Rated power Rated Power
Output Voltage 10.0~14.5VDC / 20.0~29.0VDC
Waveform Pure sine wave
Nominal Battery System Voltage 12V / 24V
Max PV Input Power(12V) 300W
Display LED+LCD
Battery Voltage 12V
Float Voltage 14.3VDC / 28.6VDC
Maximum Battery Current 30A
Machine Dimension (W*H*D) 187*255*72 mm
G.W 2.65kg
FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor 0FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor 1FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor 2FTPC1800A Series (30/40A) MPPT Solar Charge Controller with white for home or outdoor 3
