FTEP600 PLUS Series (600W) High Frequency Power Inverter/Charger with white

FTEP600 PLUS Series (600W) High Frequency Power Inverter/Charger with white
FTEP600 PLUS Series (600W) High Frequency Power Inverter/Charger with white

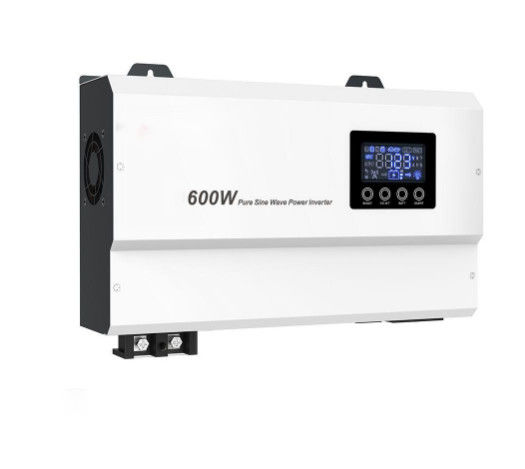

Large Image :  FTEP600 PLUS Series (600W) High Frequency Power Inverter/Charger with white

Product Details:
Place of Origin: Shenzhen China
Brand Name: Future Tech
Certification: CE,ISO,ROHS,REC
Model Number: FTEP600
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Model: FTEP600 Nominal Battery System Voltage: 12VDC
Rated Power: 600VA / 600W Waveform: Pure Sine Wave
Display: LED Dimensions (W*H*D) (mm): 320 X 231 X 96
Highlight:

600W Off Grid Solar Inverter MPPT

,

3 Phase Off Grid Solar Inverter MPPT

,

600W 3 phase hybrid solar inverter

FTEP600 PLUS Series (600W) High Frequency Power Inverter/Charger

EP1500 PLUS Series is a pure sine wave inverter applied to TV, stereos, laptops, and desktop computers and other home appliances. It will automatically switch to inverter and provide power when AC is interrupted unexpectedly.It’s perfect for the user who need a simple and economical inverter,with user-friendly installation and setting.

Features:

• Pure sine wave inverter

• Double layers PCB board.

• Support two kinds of batteries include 4 series LiFePO4 Lithium Battery Pack and Lead-acid Battery.

• Auto restart while AC recovery

• Different charging mode for different kinds of batteries

• Overload & short-circuit protection, Battery Low Voltage Protection & Over Voltage Protection, Deep discharge protection

• Advanced technology optimizes battery life

• Automatic line-to-battery switch over

• Automatic activate lithium battery pack which is be over discharged no output when AC input is OK



Specification:

MODEL FTEP600-0612 PLUS
Nominal Battery System Voltage 12VDC
INVERTER OUTPUT
Rated Power 600VA / 600W
Waveform Pure Sine Wave
Nominal Output Voltage RMS 230VAC
Output Voltage Regulation +10/-18%
Output Frequency 50Hz/60Hz ±1Hz
Inverter Efficiency (Peak) >90%
Line Mode Efficiency >95%
Typical Transfer Time Typical <10ms, 15ms max
AC INPUT
Voltage 230VAC
Voltage Range 184~278VAC ±3%
Frequency Range 45-65Hz ±2Hz
BATTERY
Note: Below Parameters (PB) Lead-acid Battery / (LI) 4 series LiFePO4 Lithium Battery Pack
Nominal Input Voltage 12VDC
Low Battery Cutoff 10.5VDC(PB) 11.5VDC(LI)
Low Battery Alarm 11.0VDC(PB) 12.0VDC(LI)
Low Battery Voltage Recover 12.5VDC(PB) 12.8VDC(LI)
High Voltage Alarm 14.5VDC(PB) 14.3VDC(LI)
High Battery Voltage Recover 15.0VDC(PB) 14.8VDC(LI)
CHARGER
Charger Voltage Boost 14.4VDC(PB) 14.4VDC(LI)
Charger Voltage Standby 13.8VDC(PB) 14.4VDC(LI)
Charging Current 10A/15A ±2A @ 12V
Overcharge Protection S.D. 15.5VDC
BYPASS & PROTECTION
Nominal Input Frequency 50Hz/60Hz (auto detection)
Overload Protection (SMPS Load) FUSE
Output Short Circuit Protection 7A
Bypass Fuse Rating 7A
Max Bypass Current 7A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm) 320 x 231 x 96
Shipping Dimensions (W*H*D) (mm) 415 x 280 x 166
Shipping Weight (kg) 3.4
OTHER
Operation Temperature Range 0℃ to 40℃
Audible Noise 60dB MAX
Display LED Screen
Communication PC WIFI BMS (BMS optional)
